The heavier work on water

For heavier work, there are our uniflot pontoons.

van-schie-uniflote

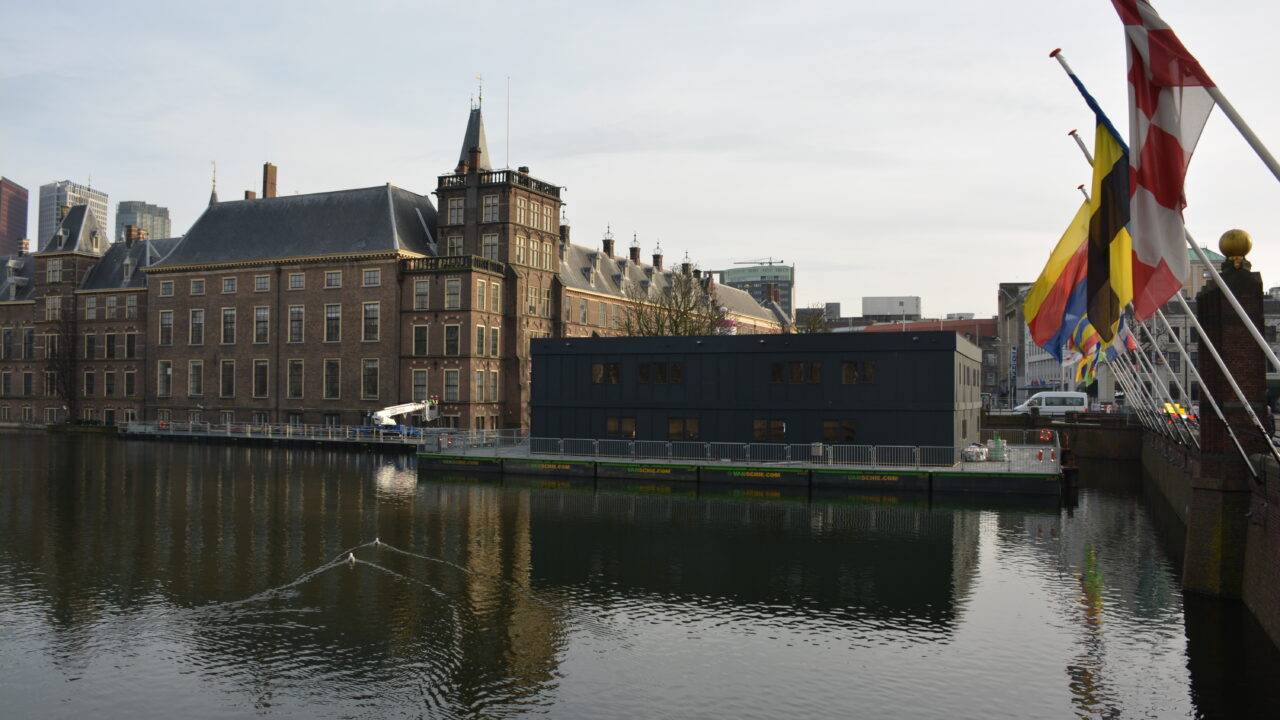

For safe and efficient operations on the water, a configuration of Van Schie Uniflote pontoons provides a stable and flexible solution. Thanks to their modular design, the pontoons can be easily configured for a wide range of applications, including work platforms, survey pontoons, temporary working islands and other temporary floating structures. Our specialists are happy to help you determine the most suitable configuration for your project.

We equip the pontoon island with spud poles, bollards, railing, etc. if your project calls for it. Van Schie is also the right place for inland waterway transport with our pusher craft. In short, for heavier work on the water, we offer everything you need to make your project a success.

Working islands of uniflot pontoons, are ideally suited for:

  • Excavators
  • Piling
  • Trucks
  • Other heavy equipment

Working islands of uniflot pontoons serve as:

  • Mooring jetty
  • Work platform
  • CPT pontoon
  • Breakwater
  • And more…

Specifications

The pontoon is a fully welded box-shaped body constructed of sheet steel (ST52). The thickness of the sheet steel is 4mm. This is welded to a frame of box sections. The pontoon is composed of 3 watertight compartments, each equipped with a manhole. It fully complies with current requirements and has been tested by the Dutch Bureau of Inland Navigation Inspections.

Accessories

Van Schie has a wide variety of accessories available for uniflot pontoons. As a result, there are even more different possibilities with the pontoons.

More specifications and accessories? Our pontoon experts will be happy to tell you more.

van-schie-uniflote-a
Uniflote type A
Length
5,636 mm
Width
2,690 mm
Height
1,230 mm
Transport length
5,890 mm
Transport width
2,960 mm
Upper deck
4 mm
Weight
5,000 kg
Buoyancy at 300 mm freeboard
9,366 kg
Maximum deck load
4 tons / m2
Maximum load coupling
14 tons
Number of compartments
3
